Specifications
| Size | S2 |

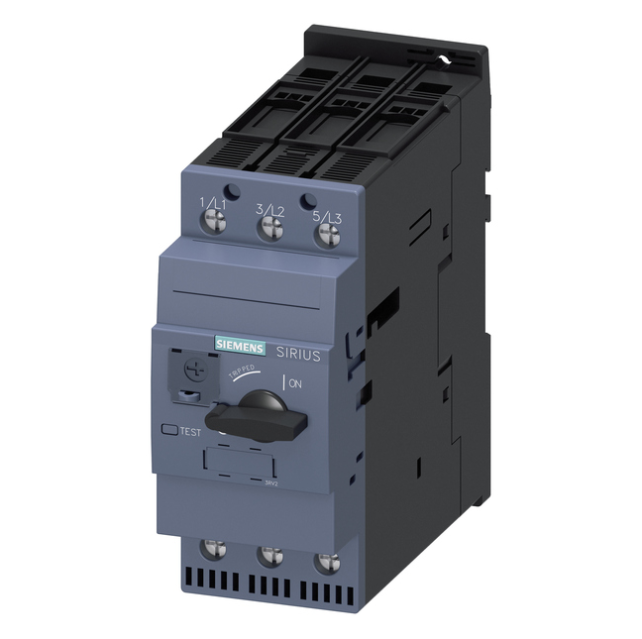

| Type | Motor Protection Circuit Breaker |
| Brand | Siemens |
| Depth | 149 mm |
| Width | 55 mm |
| Height | 140 mm |
| Series | SIRIUS 3RV2 |
| Mounting | DIN rail (35mm) or screw |
| Net Weight | 1.163 kg |
| Trip Class | CLASS 10 |
| Terminal Type | Screw-type |
| Certifications | CE, UL, CSA, CCC, ATEX, IECEx |
| EcoTech Status | Siemens EcoTech |
| Total Power Loss | 24.5 W |
| Country of Origin | Germany |
| Tightening Torque | 3.0 ... 4.5 N·m |
| Operating Frequency | 50/60 Hz |
| Overload Protection | Yes (thermal) |
| Power Loss per Pole | 8.2 W |
| Electrical Endurance | 50,000 cycles |
| Installation Altitude | Max. 2000 m |
| Operating Temperature | -20 ... +60 °C |
| Ground Fault Detection | No |
| Mechanical Service Life | 50,000 cycles |
| Phase Failure Detection | Yes |
| Overload Release Setting | 42...52 A (adjustable) |
| Protection Class (Front) | IP20 |
| Short-Circuit Protection | Yes (magnetic) |
| Auxiliary Contacts Built-in | None (0 NO, 0 NC, 0 CO) |
| Safety Function Suitability | Yes (for switching OFF) |
| Operating Power at 230V AC-3 | 15 kW |
| Operating Power at 400V AC-3 | 22 kW |
| Operating Power at 500V AC-3 | 30 kW |
| Operating Power at 690V AC-3 | 45 kW |
| Rated Operating Voltage (Ue) | 690 V AC |
| Breaking Capacity Icu at 240V | 100 kA |
| Breaking Capacity Icu at 400V | 65 kA |
| Breaking Capacity Icu at 500V | 8 kA |
| Breaking Capacity Icu at 690V | 4 kA |
| Conductor Cross-Section Solid | 1 ... 50 mm² |
| Rated Continuous Current (Iu) | 52 A |
| Storage/Transport Temperature | -50 ... +80 °C |
| Max Operating Frequency (AC-3) | 15 1/h |
| Conductor Cross-Section Stranded | 1 ... 35 mm² |
| Short-Circuit Trip (Instantaneous) | 741 A |
| Operating Short-Circuit Capacity Ics at 400V | 30 kA |
Documents
Datasheet PDFCompatible With
Motor starter assembliesIndustrial panels
Description
Motor protection. Control panel component. Industrial switching gear Sourced and supplied by Al Imran Enterprises, Lahore, Pakistan. We provide genuine Siemens industrial replacement parts for Motor starter assemblies, Industrial panels across Pakistan. Contact us for pricing, lead times, and technical compatibility checks.
Alternative & Related Parts
3RV2031-4WA10 — Frequently Asked Questions
What is 3RV2031-4WA10?▾
3RV2031-4WA10 is a Motor protection circuit breaker manufactured by Siemens. Motor protection. Control panel component. Industrial switching gear Sourced and supplied by Al Imran Enterprises, Lahore, Pakistan. We provide genuine Siemens industrial replacement parts for Motor starter assemblies, Industrial panels across Pakistan. Contact us for pricing, lead times, and technical compatibility checks.
What are the key specifications of 3RV2031-4WA10?▾
Key specifications include Size: S2, Type: Motor Protection Circuit Breaker, Brand: Siemens.
Can Al Imran Enterprises supply 3RV2031-4WA10 in Pakistan?▾
Yes, Al Imran Enterprises specializes in sourcing 3RV2031-4WA10 and similar industrial parts for customers across Pakistan. Contact us for current availability and pricing.
What is 3RV2031-4WA10 compatible with?▾
3RV2031-4WA10 is compatible with: Motor starter assemblies, Industrial panels.
