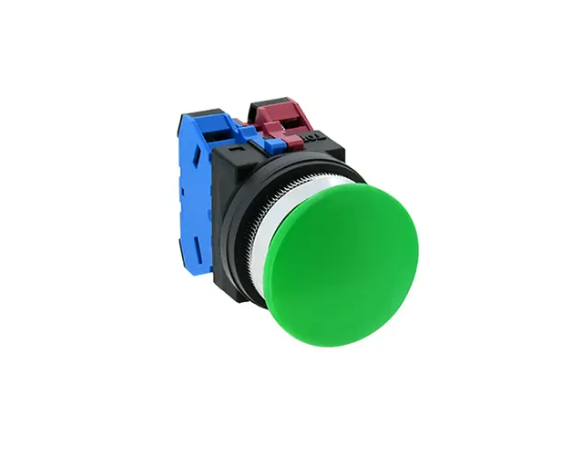

Sourced and supplied by Al Imran Enterprises, Lahore, Pakistan. The IDEC ABN310G is a heavy-duty pushbutton control unit from the TWN/TWND series of 30 mm industrial operators: a large round green mushroom actuator (40 mm head) with momentary (momentary-contact) operation and a single NO contact. The chrome-plated metal bezel and oil-tight construction are built for machine-tool panels and harsh industrial environments. Contacts are silver alloy rated for a continuous thermal current of 10 A with rated insulation voltage Ui 250 V, wired via screw-clamp M3.5 terminals on the rear. Electrical durability under load is approximately 100,000 operations and mechanical durability approximately 250,000 operations; the front is sealed to IP65 and the operating temperature span is -25 to +50 degrees C. Approvals across the series include UL 508 (File E68961), CSA (File LR48366), EN 60947-5-1 and G B14048.5, making the unit straightforward to specify in export machinery as well as local panels. Typical duties include start/jog stations, conveyor control stations and machine main-control pushbuttons where a large, easily struck operator is preferred. Al Imran Enterprises supplies genuine IDEC operators, contact blocks and pilot devices from Lahore to OEMs, panel builders and maintenance teams nationwide. Tell us your required contact arrangement and we will supply the complete assembled control unit.
