Specifications
| Type | Voltage Sensing Relay (Plug-in) |
| Brand | Omron |
| Model | LG2-AB |
| Series | LG2 |
| Weight | Approx. 100 g |
| Sockets | PF083A (front) / PL08 (back) |
| Variants | LG2-AB-AC100, LG2-AB-AC110, LG2-AB-AC200 |
| Part Number | LG2-AB |
| Mounting Type | 8-pin plug-in (socket mount) |
| Electrical Life | 50,000 operations min at max load |
| Mechanical Life | 10,000,000 operations min |
| Output Contacts | DPDT (2 form C), silver alloy |
| Repeat Accuracy | ±3% max |
| Country of Origin | Japan |
| Power Consumption | 5 VA max |
| Must-operate (SET) | 75% to 120% of rated voltage (80% to 110% for 110 VAC model) |
| Switching Capacity | 5 A @ 100 VAC; 2 A @ 200 VAC; 5 A @ 28 VDC; 0.2 A @ 110 VDC |
| Ambient Temperature | -10 to +40 °C (no condensation) |
| Dielectric Strength | 2,000 VAC, 1 minute |
| Rated Carry Current | 5 A |
| Must-release (RESET) | 70% to 115% of rated voltage (75% to 105% for 110 VAC model) |
| Operate/Release Time | 0.5 s max |
| Insulation Resistance | 10 MΩ min at 500 VDC |
| Temperature Variation | ±5% max |
| Rated Operating Voltage | 100 VAC, 200 VAC 50/60 Hz (also 110 VAC variant) |
Documents
Datasheet PDFCompatible With
Omron LG2 series voltage sensing relaysLG2-DB DC sensing relay (for DC circuits)PF083A front-mounting socketPL08 back-mounting socketMotor protection circuitsIndustrial control panels
Description

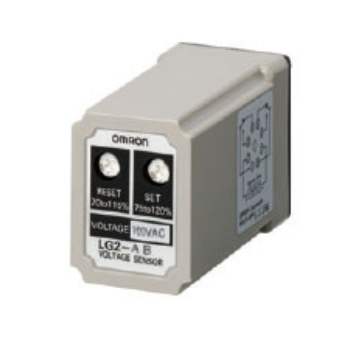

Sourced and supplied by Al Imran Enterprises, Lahore, Pakistan. The Omron LG2-AB is a compact, economical plug-in voltage sensing relay from the LG2 series, designed to detect AC voltage and switch its DPDT output contacts when the monitored voltage crosses the set point. Available in 100 VAC, 110 VAC and 200 VAC rated models, the LG2-AB is widely used for undervoltage and overvoltage protection of motors, power converters, and industrial control circuits. Each LG2-AB unit is factory-rated for a specific AC voltage (100 VAC, 110 VAC, or 200 VAC) — buyers should specify the required rated voltage when ordering.
Alternative & Related Parts
LG2-AB — Frequently Asked Questions
What is the Omron LG2-AB?▾
It is a compact plug-in voltage sensing relay from the Omron LG2 series that detects AC voltage and switches its DPDT output contacts when the monitored voltage crosses the set point.
What are the key specifications?▾
Detected voltage 100/110/200 VAC at 50/60 Hz, 5 VA max consumption, 5A rated carry current, DPDT output, 8-pin plug-in, SET 75-120% and RESET 70-115% of rated value.
What is it used for?▾
Voltage monitoring, undervoltage protection, alarm and interlock duties in motor control circuits, control panels and process plant electrical systems.
What certifications does it carry?▾
Confirm the compliance documentation applicable to the supplied unit with our team at quote.
Is it available in Pakistan?▾
Yes, available through Al Imran Enterprises, Lahore, from stock or on import lead time.
Where to buy it in Pakistan?▾
Contact Al Imran Enterprises, Lahore for genuine Omron LG2-AB voltage sensing relays.
Is it covered by warranty?▾
Sourcing support and genuine-part guarantee apply; ask about the exact warranty at quote.
